Mutilayer Electronic PCB assembly with surface mount SMT and through hole soldering DIP technologies

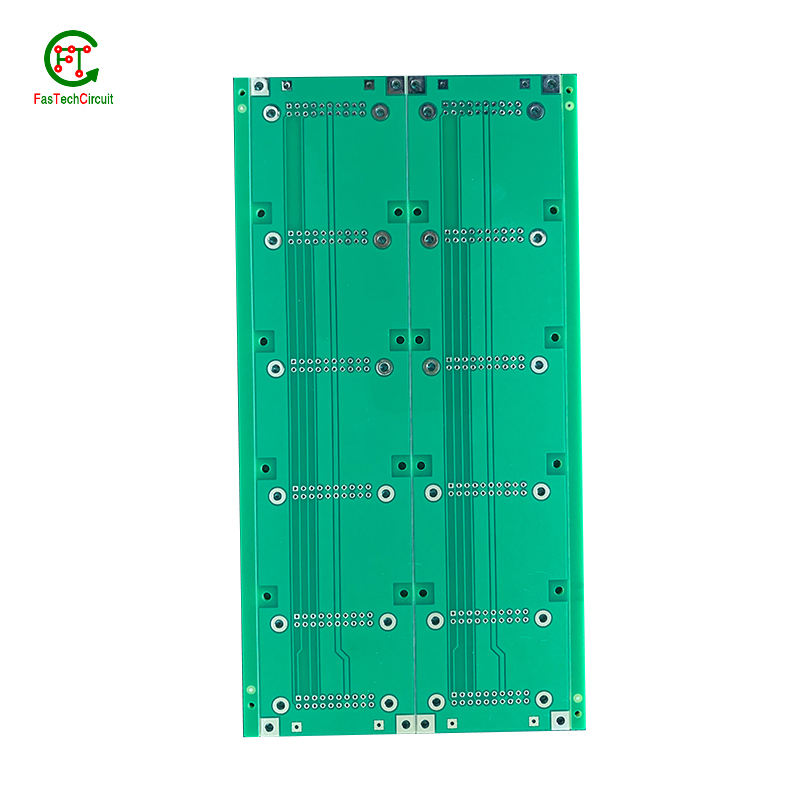

Board information
Process: HASL/LF-HASL/OSP/GOLD
Surface: green oil
Character: White
Material: FR4
Layers: 2 layers
Type: Double panel, driver board
Shelf life: 5 years
Products Description
Item (PCB Assembly:One-Stop OEM Service
Max Board Size:680*550mm
Smallest:0.25"*0.25"
Min Components size:0201-54 sq.mm (0.084 sq.inch),Long Connector,CSP,BGA,QFP
Speed:0.15sec/chip, 0.7sec/QFP
Wave-Solder
Max.PCB Width:450mm
Min.PCB Width:unlimited
Components Height:Top 120mm/Bot 15mm
Sweat-Solder
Metal Types:Part,Whole,Inlay,Side-step
Metal Material:Copper,Aluminum
Surface Finish:Plating Au,Plating Silver,Plating Sn
Air Bladder Rate:less than 20%
Assembly Types:SMT and Thru-hole
Solder Type:Water Soluble Solder Paste,Leaded and Lead-Free
File Formats:Bill of Materials ,Gerber Files,Pick-N-Place Files(XYRS)
Type of Service:Turn-Key,Partial Turn-Kye or Consignment
Component Packaging:Cut Tape,Tube Reels Loose,Parts
Turn Time:1-15 Days
Testing:XRAY Inspection,AOI Testing ICT,Flying Probe,Burn-in,Function Test
