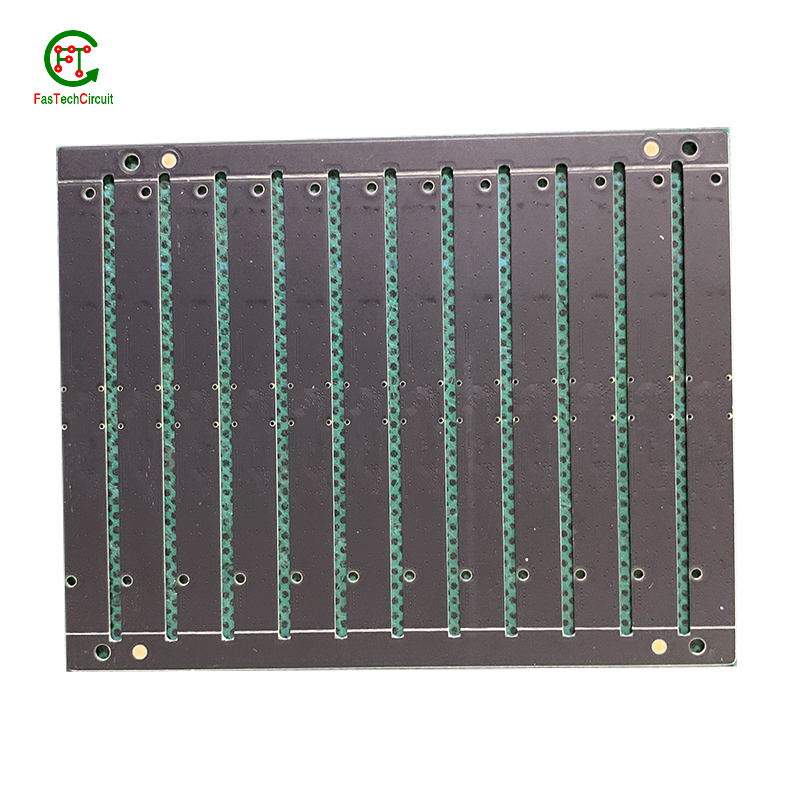

Multilayer Circuit Board Cctv Ahd Camera Pcb Manufacturer In China
Part number: FTC08-572
Layer count: 6
Material: FR-4
Thickness: 1.6mm
Copper: 1 OZ
Treatment: Immersion Gold
Solder mask:black
Silkscreen: white
Shape: V-CUT & routing tabs
Application: medical equipment
Min trace width:5mil
Min trace gap:4.5mil
Min hole:0.2mm
Boare size:123 x 24.5 mm
Trademark: FasTechCircuit
PCB assembly Production processes:
Material Receiving →
IQC →
Stock →
Material to SMT →
SMT Line Loading →
Solder Paste/Glue Printing →
Chip Mount →
Reflow →
100% Visual Inspection →
Automated Optical Inspection (AOI) →
SMT QC Sampling →
SMT Stock →
Material to PTH →
PTH Line Loading →
Plated Through Hole →
Wave Soldering →
Touch Up →
100% Visual Inspection →
PTH QC Sampling →
In-Circuit Test (ICT) →
Final Assembly →
Functional Test (FCT) →
Packing →
OQC Sampling →
Shipping
