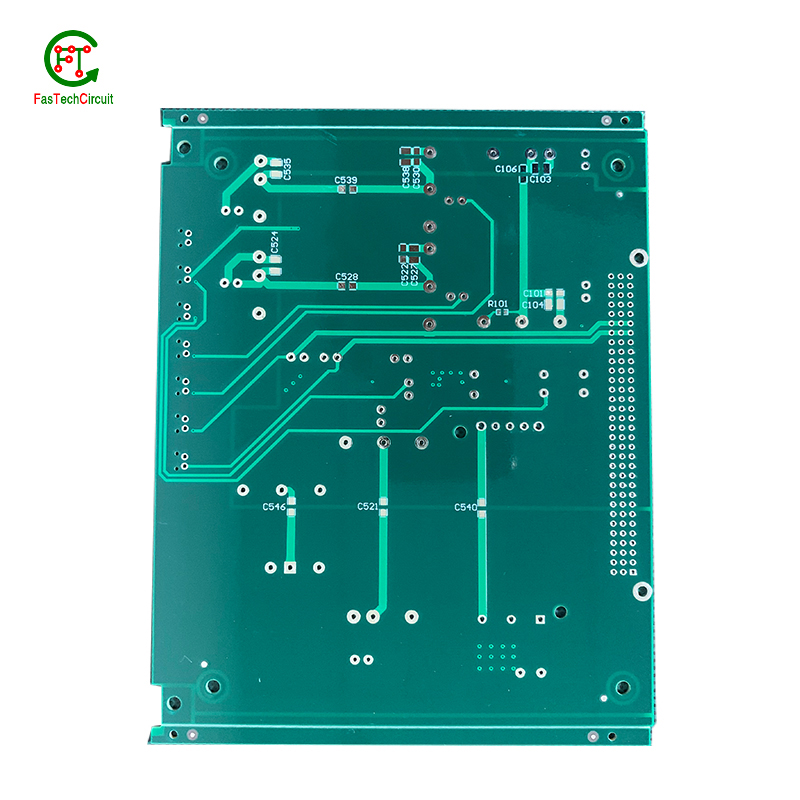

Heavy Copper PCB(2 OZ)

Layer count:2L

Material:TU865

Board thickness:2.2mm

Copper thickness on all layers: 2oz

Min. LW/LS:6mil

Min. Drill Size :1.0mm

Surface Finish:ENIG

Other: delivery in 12 hours

Application:Industrial Controller

Capability

1.Base Material: FR-4 / HI-TG/Aluminum /CEM-1/Rogers/Argon/Taconic/Teflon

2.Layers: 1-30

3.Finished inner/outer copper thickness: 1-12OZ

4.Finished board thickness: 0.2-7.0mm

5.Min hole sizeMechanical hole: 0.15mm Laser hole: 0.1mm

6.Controlled Impedance: +/- 10%

7.Plugging vias capability: 0.2-7.0mm

8.Outline profileRout/ V-cut/ Bridge/ Mouse bite holse

9.Surface treatmentHASL, HASL lead free, Immersion Gold, Immersion Tin, Immersion Silver, Hard gold, Flash gold, OSP…
