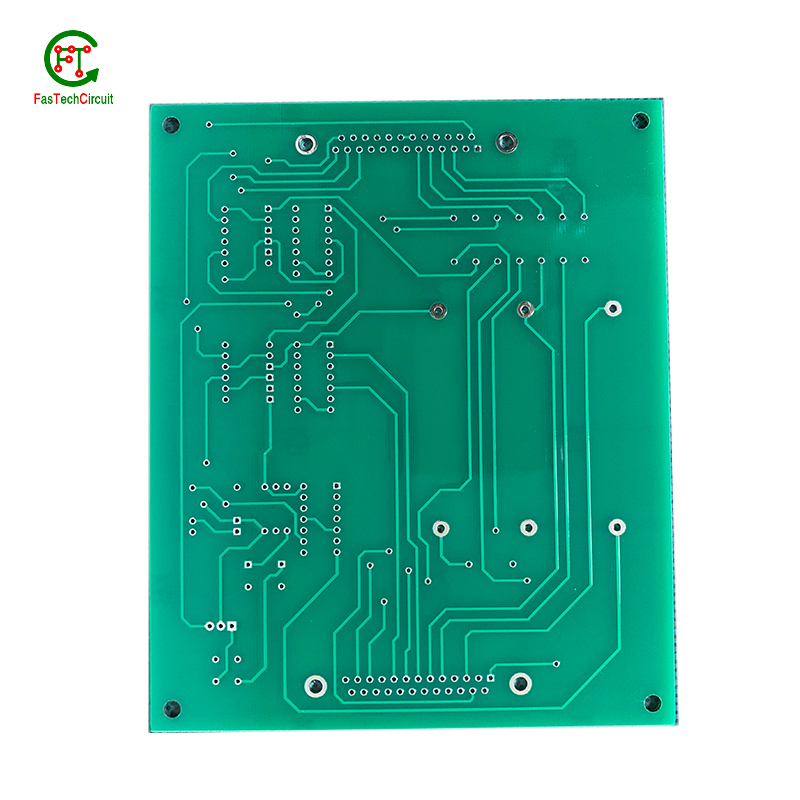

Custom Electronic Pcb Pcba 4G Antenna Pcb Printed Circuit Board Assembly Manufacturer Service
Specification
Layer count:2
QTY:10,000 PCS/month
Material: FR-4 TG135
Solder mask:green
Silkscreen:white
copper:1 OZ
Finish treatment: LF HAL
Sharpe: rectangle according to gerber
Delivery time: 10 days
PCB ASSEMBLY SERVICE
Assembly Option: Surface mount(SMT)&Thru-Hole(THT),Box building,Potting and Coating,In house programming,Packaging
Component Size:
Passive Component: we can accept components as small as 01005,0201
BGA:We have ability to handle BGA of 0.25mm pitch with X-ray testing.
Fine Pitch parts: we can assemble 0.25mm fine pitch parts,POP,QFP,CCGA,CSP,etc
Max components Height:25mm(SMT),Top 120mm/Bot 15mm(wave solder)
Board Dimension: Min Board Size: No Limited/Max Board Size: 680*500mm
Board type: Rigid PCB, Flexible PCB, Rigid-flex PCB, Copper PCB,HDI
Testing:ICT,AOI,X-RAY,Functional Test(FCT),Aging Test
Quality Standard:IPC-A-610E
