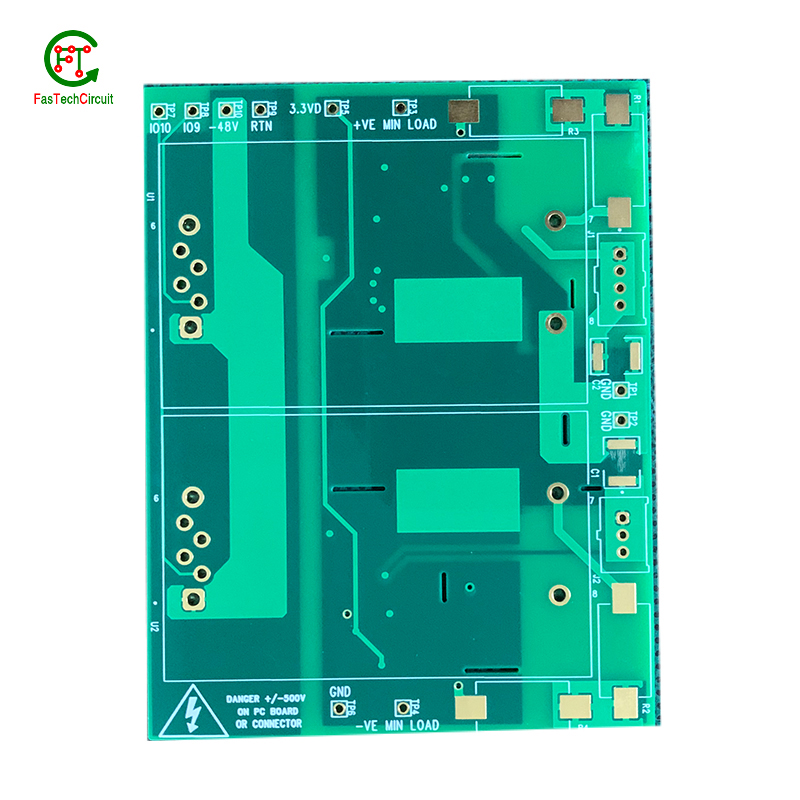

Professional Single Double-Sided Multilayer PCB Assembly Circuit Board Manufacturing Multilayer PCB
Model Number:BR2589-01
Type:Multilayer pcb
Place of Origin:Guangdong, China
Brand Name:FasTechCircuit
Number of Layers:2-layer
Base Material:FR-4
Copper Thickness:1oz
Board Thickness:1.6mm
Min. Hole Size:0.15mm
Min. Line Width:0.076mm
Min. Line Spacing:0.076mm
Surface Finishing:Lead Free HASL
Board Size:155*198mm
High PCB technique:Blind &buried via+Impedance control
PCB QC:Flying Probe Test,E-test
PCBA QC:X-ray,AOI Test, FCT Equipment
Hot & competitive:Industrial control boards, power supply boards, computer peripherals
PCBA Prototype:Support sample order
Certification:ISO9008,UL,FCC,CE,SGS,RoHS
*** PCB Manufacturing Capability ***
-Board Type: Rigid, Flex, Metal Core(IMS)
-Layer Count: 1-30
-Base Material: FR-4(various Tg and CTI, halogen free, CAF resistant), CEM-1, CEM-3, Polyimide(PI)/Polyester, Aluminum
-Board Thickness: 0.20mm – 7.00mm
-Copper Weight: 0.5oz –12.0oz
-Soldermask Color: Green(matt/glossy), Yellow, Black(matt/glossy), Blue, Red, White, Orange
-Legend Color: White, Yellow, Black, Orange
-Surface Finish: HAL Lead-free, Galvanic Gold, ENIG, Immersion Tin, Immersion Silver, OSP, ENEPIG
-Advanced Technology: Impedance Control, Edge Plating, Half Hole, Counter Sink/Bore Hole, SBU
-Stiffener for FPC: PI, FR-4, Metal
-Compliance and Certification: ISO, RoHS, UL, IPC
