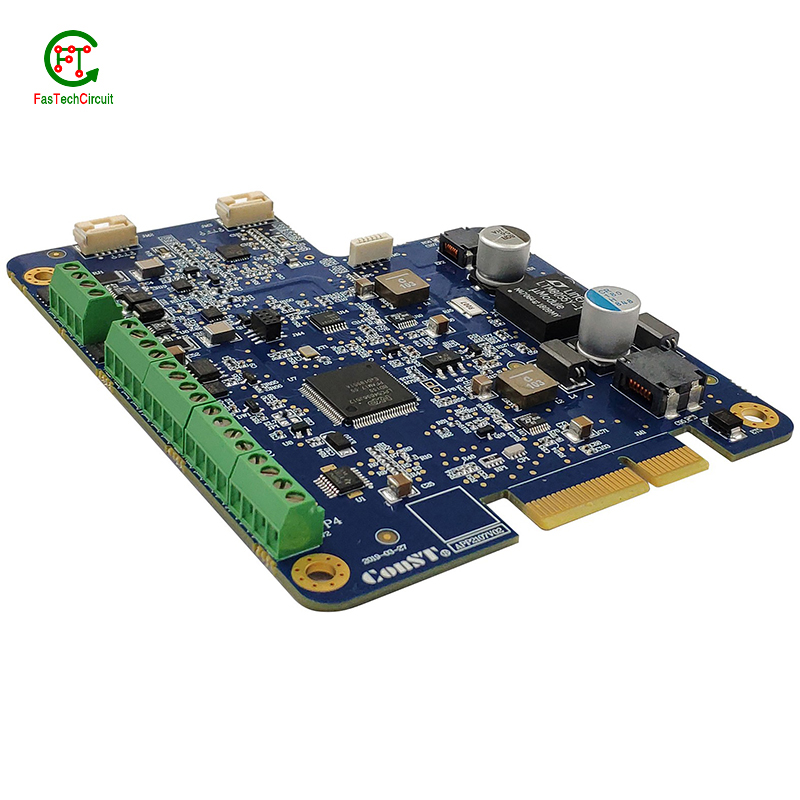

Switching Power Supply PCB Power Motherboard PCBA
Layer:10
PCB Testing Service:AOI X-RAY FUNCTION TEST
SMT Efficiency:BGA.QFP.SOP.QFN.PLCC.CHIP
Hole Tolerance: +/- 0.075mm for PTH, +/-0.05mm for NPTH
Application:Battery Pack
Certificate:ISO9001/UL
Solder mask:LPI, Blue
Treatment:ENIG
Special treatment: gold finger(edge connector)
PCB ASSEMBLY SERVICE
Assembly Option: Surface mount(SMT)&Thru-Hole(THT),Box building,Potting and Coating,In house programming,Packaging
Component Size:
Passive Component: we can accept components as small as 01005,0201
BGA:We have ability to handle BGA of 0.25mm pitch with X-ray testing.
Fine Pitch parts: we can assemble 0.25mm fine pitch parts,POP,QFP,CCGA,CSP,etc
Max components Height:25mm(SMT),Top 120mm/Bot 15mm(wave solder)
Board Dimension: Min Board Size: No Limited/Max Board Size: 680*500mm
Board type: Rigid PCB, Flexible PCB, Rigid-flex PCB, Copper PCB,HDI
Testing:ICT,AOI,X-RAY,Functional Test(FCT),Aging Test
Quality Standard:IPC-A-610E
